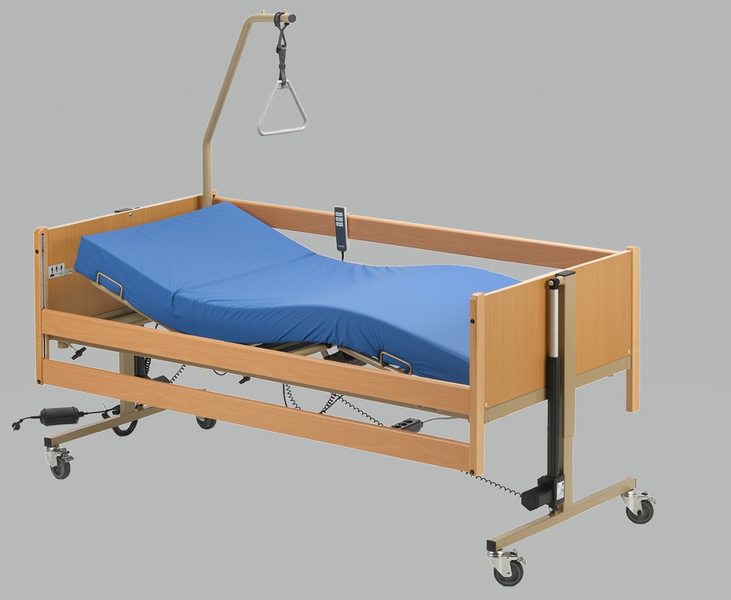

Mantovani Bed G4

Column medical bed with external motor at the head and foot of the bed.

Key points
- 3 functions: variable height, adjustable back rest, adjustable leg rest.
- Compact: dismantles into 4 parts (weight of each part: 20 kg at most).
- Easy to install: can be mounted quickly without tools by a single person*.
- Accessory: available with Milano wooden rails.
Lifting pole placed at an angle.
Compact SMPS transformer.

Thuasne beds and Milano wooden rails are compliant with applicable European standards.

Technical characteristics
- Column beds with motor at the head and foot of the bed, which provides for space under the bed.
- Cables attached to the frame so they cannot be pulled out. Reinforced main cord to prevent accidental cutting.
- 2-part electric adjustable leg rest: Part 2 tilts, can be adjusted manually to bend legs at the knees.

Bed (A: Length x B: width): 214 x 105 cm.
C - Height of panels from platform: 42 cm.
D - Min-max height of the platform with 100 mm wheels: 40/80 cm.
Bed base (E: Length x F: width): 200 x 94 cm.
Ground clearance: 35 cm.
Min-max mattress height with Milano rails: 12/18 cm.
Weight of the heaviest element: 20 kg.
Kit bed dimensions (length x width x height): 105 x 63 x 130 cm.
Color: light brown.

Maximum load (user, mattress and accessories): 170 kg.
Maximum user weight: 135 kg.
Body mass index (BMI): > 17.

2 year warranty for electric components and 5 year warranty for the frame, in normal conditions of use.

Reference: V2006 540 001.

* See the instructions for use.
